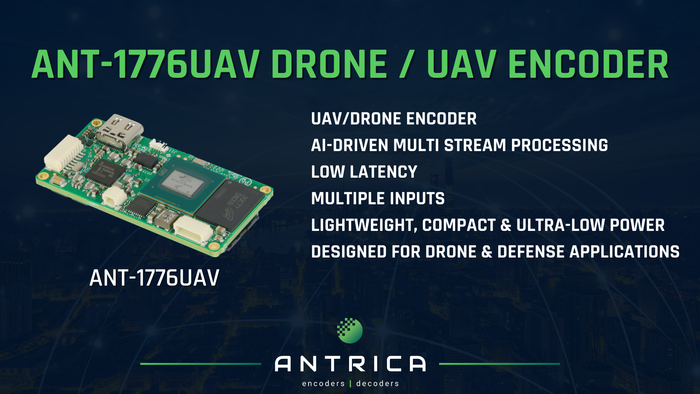

ANT-1776UAV H.265 HDMI+CVBS Input Micro Sized Drone Video Encoder with AI Option

NT-1776UAV is an advanced UAV or Drone-oriented encoder with H.264/5 codec and 3 x input types HDMI, USB & CVBS, you can choose to use 1, 2 or 3 inputs at a time. The product comes with a durable, flexible ribbon HDMI connector.

The main encoder board can handle multiple streams simultaneously (up to 8MUX) and supports end-to-end 100msec ultra-low-latency streaming over networks using either another hardware ANT-1776 product, or the dedicated software based player (provided) for Windows, Linux and Android.

The ANT-1776UAV supports Unicast, Multicast, Broadcast in UDP, RTP, RTSP with Forward Error Correction (FEC) support. Capabilities include video and audio capture, encoding, decoding, transcoding and display, and video raw-data pre-processing.

With the option to add an AI acceleration module, which includes/adds powerful Hailo-8, 26 TOPS AI Accelerator enabling high AI accuracy detection & tracking as well as hosting customers AI processes. Yolo5 is included as standard, but customisation is also possible.

This unit is designed to function at extreme temperatures, it has been tested to -40C + 85C (Tested to MIL-STD-810G Standard) which is particularly useful in subsea, military, defence and unmanned vehicle markets.
Designed to be integrated into an enclosure as it is a base board product, example applications for this type of product would be UAV, unmanned vehicles & drones etc.
