MVC Flow Essential

Mavinci Dynamics Limited Stand: DX535

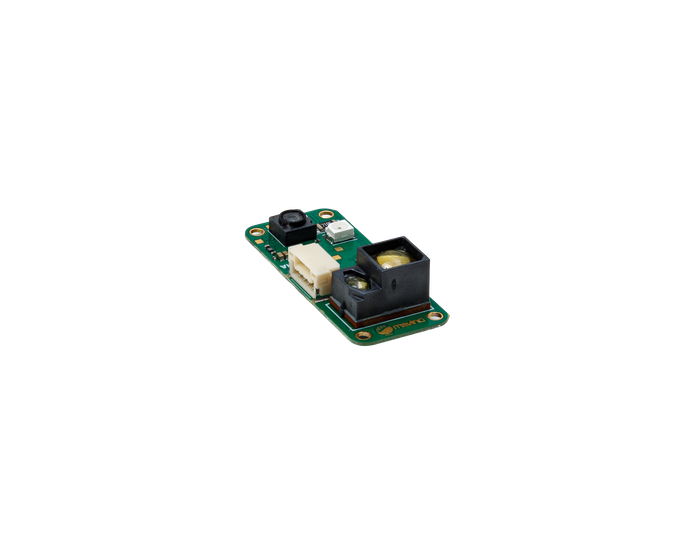

MVC Flow Essential

Lightweight Optical Flow & Altitude Module for Precision Navigation

The MVC Flow Essential is engineered for micro drone applications requiring accurate optical flow, altitude awareness, and motion sensing. Its ultra-light design and precision sensors enable robust terrain following and position hold, even in GPS-denied or visually challenging environments. With plug-and-play interfaces and real-time data output, it empowers developers to elevate autonomous navigation capabilities.

Electrical Data

Designed with energy efficiency in mind, MVC Flow Essential ensures stable performance with a low 5.25V max input. This minimal power requirement makes it ideal for lightweight aerial platforms where battery life is critical.

Parameter

Value

Max Input Voltage

5.25V

🔧 Processor

The STM32F412CEU6 processor delivers precise and reliable real-time data processing, empowering UAV systems with immediate response to motion and environmental input, all while maintaining an ultra-low power footprint.

Component

Specification

Microcontroller

STM32F412CEU6 – ARM Cortex-M4, 100MHz, 512KB Flash

🧠 On-Board Sensors

By integrating advanced motion, optical flow, and distance sensors, MVC Flow Essential ensures superior navigation, obstacle awareness, and hover accuracy. The IR illumination further enhances performance in low-contrast and poorly lit surfaces.

Sensor Type

Model

Accel/Gyro

ICM-42688-P

Optical Flow

Pixart PAW3902JF-TXQT

Distance

Broadcom AFBR-S50LV85D

Illumination

850nm Infrared (IR) LED

🔌 Interfaces

Equipped with a debug port and CAN communication port, the unit simplifies integration and data transmission. These standard interfaces support smooth operation with companion autopilot systems and diagnostic tools.

Interface Type

Description

Debug Port

For diagnostics and firmware access

CAN Port

Real-time communication connection

📦 Mechanical & Environmental Data

MVC Flow Essential is built for micro aerial systems. Its compact dimensions and robust temperature range support operation in demanding conditions without sacrificing reliability or flight endurance.

Parameter

Value

Weight

2.2 g

Operating & Storage Temp

-20°C to +85°C

Dimensions

15mm (W) × 35mm (L)
