MVC Gimbal Mini

Mavinci Dynamics Limited Stand: DX535

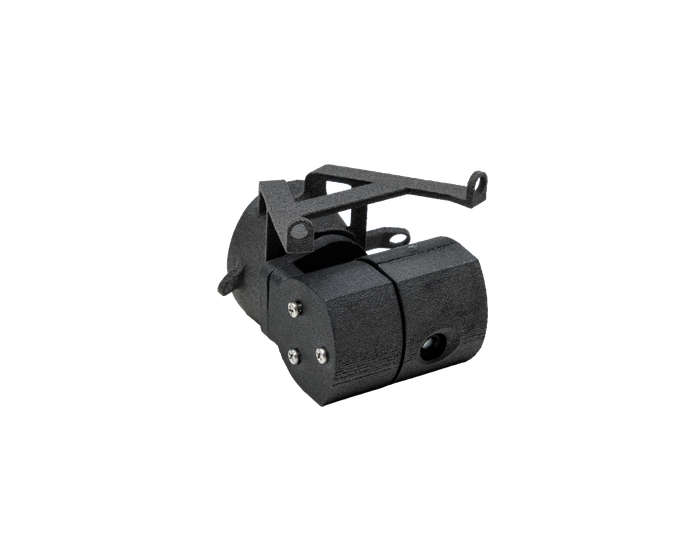

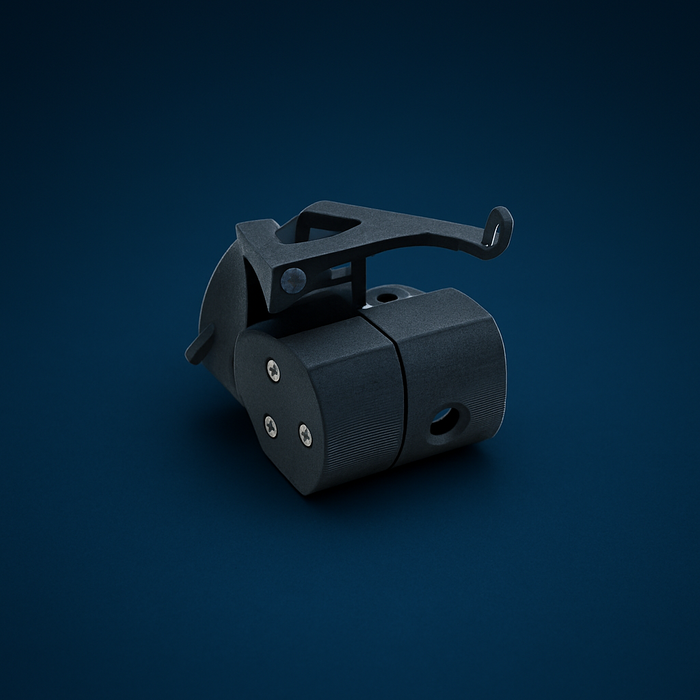

MVC Gimbal Mini

Compact, Secure, and Precision-Stabilized Gimbal System for Next-Generation Micro Drones

The MVC Gimbal Mini redefines precision and integration for micro drone platforms, combining lightweight construction, real-time stabilization, secure hardware, and smart sensing in a palm-sized package. Built for rapid deployment and seamless compatibility, it empowers drone developers with a powerful edge in aerial imaging, reconnaissance, and industrial applications.

🔧 Processor

Compact Intelligence for Real-Time Precision
At the heart of the gimbal is an STM32L452REY6TR microcontroller, combining real-time processing with exceptional energy efficiency. Its high-speed control loops enable precise stabilization, allowing drone developers to create highly responsive payload systems without compromising size or weight.

Component

Specification

Microcontroller

STM32L452REY6TR – 32-bit single-core @ 80MHz, 512KB Flash

🧠 On-Board Sensors

Stability Through Smart Sensing
Advanced IMU and magnetic sensing ensure the gimbal maintains consistent orientation in fast-moving, turbulent flight environments. With onboard motion awareness, the MVC Gimbal Mini delivers smooth camera control and accurate positioning for critical inspection, mapping, and surveillance tasks.

Sensor Type

Model

Accel/Gyro

ICM-42688-P

Compass

BMM150

⚙️ Motor Drivers

Smooth, Silent, and Responsive Gimbal Motion

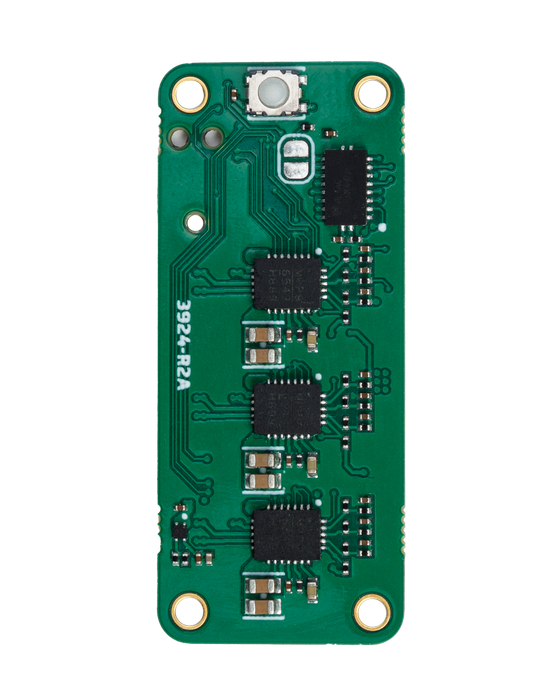

Utilizing three high-performance MP6543HGL-Z brushless motor drivers, the MVC Gimbal Mini delivers precision control across all three axes. Whether maintaining a stable field of view or executing rapid angular adjustments, this gimbal system ensures crisp, vibration-free video capture and real-time responsiveness.

Driver Type

Details

MP6543HGL-Z (x3)

3-axis (Roll / Pitch / Yaw), Three-phase BLDC drivers[MSM1]

🔌 Interfaces

Universal Connectivity for Accelerated Integration
With a comprehensive range of connectors—including camera, gimbal, sensor, and autopilot board interfaces—the MVC Gimbal Mini offers unmatched flexibility. Drone OEMs can minimize development effort and rapidly scale across platforms, reducing integration risk and enabling faster time to market.

Interface Type

Description

Debug Port

Single debug interface

Motor Connectors

3 total – Roll / Pitch / Yaw

Autopilot Board Connector

Includes Gimbal & Camera Connector

Gimbal Board Connector

Direct interface

Camera Sensor Connector

High-speed signal connection

Camera Board Connector

Communication & power delivery

Electrical Data

Power-Efficient Design for Extended Operations
Engineered for seamless integration with 2S battery systems, the MVC Gimbal Mini ensures low-power consumption while maintaining stable voltage performance under demanding use. This allows drone manufacturers to deliver longer flight times and reduced energy overhead—perfect for endurance-focused aerial missions.

Parameter

Value

Max Input Voltage

8.5V (2S Battery)

📸 Camera Integration

Sensor-Aware Imaging for Smarter Payloads
The integrated ICM-42688-P inertial sensor allows the camera module to detect and respond to even the slightest motion. This adds a layer of environmental awareness to imaging systems—vital for precise data collection, stable imaging, and machine vision applications in dynamic missions.

Component

Details

Onboard Sensor

Accel/Gyro: ICM-42688-P

🔐 Security

Hardware-Based Protection for Trusted Drone Operations
The MVC Gimbal Mini includes Microchip’s ATSHA204A secure element, enabling cryptographic authentication and protection at the hardware level. By embedding trusted security into the gimbal’s architecture, it safeguards against tampering, spoofing, and unauthorized use—ideal for commercial and defense-grade UAVs.

Feature

Description

Secure Element

ATSHA204A Microchip Crypto Authentication

Functionality

Symmetric authentication between host and client

Purpose

Enables secure communication, device identity verification, and anti-tampering


📦 Mechanical & Environmental Data

Lightweight & Rugged for Demanding Environments
Weighing just 27 grams, the MVC Gimbal Mini is optimized for micro drone platforms where every gram counts. Its compact footprint and industrial-grade temperature tolerance (-20°C to +85°C) make it a robust solution for field deployment in diverse and challenging conditions—from high-heat environments to freezing altitudes.

Parameter

Value

Weight

27 g

Operating & Storage Temp

-20°C to +85°C

Dimensions

35mm (W) × 45mm (L)
